Gas Flow Simulation Entrusted Analysis Service
- We help customers to carry out their experiments through the use of three-dimensional thermal fluid analysis (CFD) software.
- We create a 3D analysis model from the data of CAD, printed drawings, and so on that you have, and then perform a simulation.
- It is possible to perform various simulations under the specified conditions of gas flow rate, temperature, and pressure.
|
|
Analysis example
|
Fluid analysis (flow velocity distribution) |
Thermal analysis (temperature distribution) |

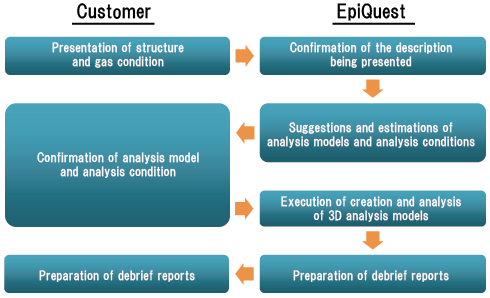

Flow of utilization of the entrusted analysis service
|
|
Analysis type
- Fluid analysis (flow velocity distribution)
- Thermal analysis (temperature distribution)
- Diffusion analysis (gas concentration distribution)
|
|
Analysis application example
- Optimization of reactor shape
- Expected temperature distribution of wafer trays
- Optimization of heater shape…etc.
|
|
- It takes two to several weeks from the creation of models up to the submission of debrief reports depending on the analysis model and conditions.
- Any expense will not be costed at all until the analysis is executed.
- Standard analysis is a steady-state analysis.
- For any inquiry, click here.
|
